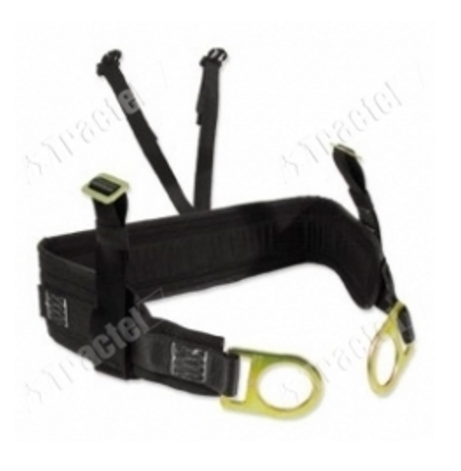

Tractel XSAD1 Saddle for Specialty Harnesses

The Pro-Seat saddle is a positioning saddle with height adjustment, designed for use on the TowerPro and Pro-series harnesses. With full wrap around comfort pad and internal aluminium stay, the Tractel adjustable saddle eliminates pelvic pressure when under suspension. When not in use the Pro-Seat saddle can be adjusted easily to sit up and high on the waist eliminating any hindrance that is experienced when climbing with a saddle hanging low on the legs.

Features:

• Internal aluminium stay to eliminate pelvic pressure
• Wrap around laminated pad for complete comfort
• Adjustable height for correct fit while suspended within positioning.
• The saddle will adjust high out of the way eliminating hindrance that may be caused by a saddle when climbing.
• Extended positioning D-rings for use with the Tractel Posi-Hook or other positioning assemblies

Specifications:

• Structural webbing: High tenacity polyester
• Width: 13⁄4 in. (45 mm) CSA Z259.1-04
• Thickness: 1⁄16 in. (1.4 mm)
• Tensile strength: 5,700 lbs. (25.4 kN)
• Webbing is heat-cut to prevent fraying
• Stitching Saddle is lock-stitched. Thread: #138 polyester
• D-rings Plating: zinc dichromate
• Proof load: 100% at 3,600 lbs.
• Tensile strength: 5,000 lbs. (22.2 kN)
• Connector buckle: Plating: zinc dichromate
• Tensile strength: 4,000 lbs. (17.8 kN)
• Back support foam: Closed cell foam laminate
• Thickness: 5⁄16 in. (8 mm)
• Capacity:310 lbs.(140 kg), one person

Applications:

• Climbing masts, towers, and aerials
• Specific access applications such as confined space where suspension and positioning techniques can prove to be restrictive and challenging.
• Specific climb assist and rope access system

Applicable Standards:

• Manufactured to OSHA and ANSI requirements for positioning devices used within fall arrest systems.
• CSA Z259.1-05

Sold/Each

WARNING: The Pro-Seat is a positioning device that must be used with any TowerPro orPro-series harness. The use of the Pro-Seat Saddle as a fall arrest attachment point or as a stand alone product is prohibited. A work positioning system must be used in conjunction with a complete fall arrest system.
