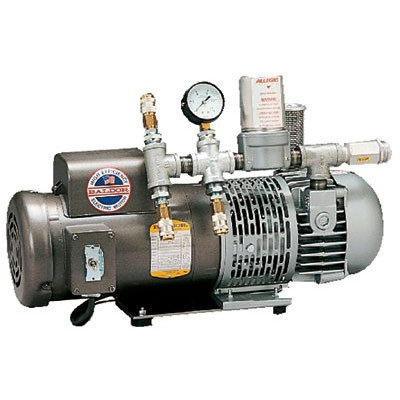

Allegro 9832 Ambient Air Pump A-1500 TE - CLOSEOUT

SKU:
AL-9832
UPC:
806808001696
MPN:
SC-GMC-MPN-603
Availability:
Ship 3-5 business days
Weight:
25.00 LBS
Width:
10.00 (in)
Height:
15.00 (in)
Depth:
27.00 (in)

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 4 or above and get 5% off
$4,442.67
Frequently bought together:

Description

Portable air source for up to three full or half face respirator users, or two hood users. Solid performance in multi-worker applications, cleaning, sanding or chemical handling operations.

Construction:

  • Rigid metal base & housing with four rubber feet
  • Brass & galvanized steel plumbing
  • Quick-connect Rectus (OBAC) fittings (other fittings available upon request)
  • Adjustable brass pressure relief valve
  • Pressure gauge 0-1 5 psi (0-1.03 bar)
  • Fan guard
  • Powder coated gray

Pump:

*Warning: Ambient Air Pumps are not to be used with generators

**Warning: Air inlet to the pump must be located where breathable air can be assured at all times

Type: Oil-less, rotary vane, direct driven
Vanes: Carbon construction (4ea/replaceable) (3.5" (8.89cm) x 1.3" (3.40cm) x 0.188" (.47cm))
Inlet Filter: 50 micron felt material
Exhaust Filter: 0.3 Micron HEPA
Working Pressure: 2-12 psi (.14-.83 bar) (15 psi max 91.03 bar))
Performance: 0-20 CFM (0-33.9 m3/hr) (adjusted via pressure relief valve)
Airline Length: 100 Feet (30.4m) maximum, from pump to respirator (sold separately)
Noise Level: At Pump:                 95 dB
At 6 feet (1.82m):     85 dB
At 10 feet (3.04m):   78 dB
Temperature Range: 32°F - 104°F (0°C - 40°C)

Motor:

HP: 1 1/2 HP, TEFC continuous duty
Certifications: UL Recognized, CSA Certified
Volts: 115V/230V AC Single Phase, 60 Hz
Current Draw: 12.4 A @ 115V (6.2 A @ 230 V)
RPM: 1725
NEMA Nom Eff 80
Cord: 8' (2.43m) 14/3 AWG SJTW-A 300V Neoprene medium duty
Switch: Toggle, external ON/OFF
Plug: NEMA 5-15P (L6-20P in 230V configuration) 3 prong

Dimensions:

Length In (cm) Width In (cm) Height In (cm) Weight Lbs (Kg)
27" (68.5 cm) 10" (25.4 cm) 15" (38.1 cm) 122 lbs (55.33 kg)

Sold/Each

 WARNING: This product can expose you to chemicals including Crystalline Silica, Lead and Nickel
which are known to the State of California to cause Cancer & Reproductive Harm
For more information go to www.P65Warnings.ca.gov.
