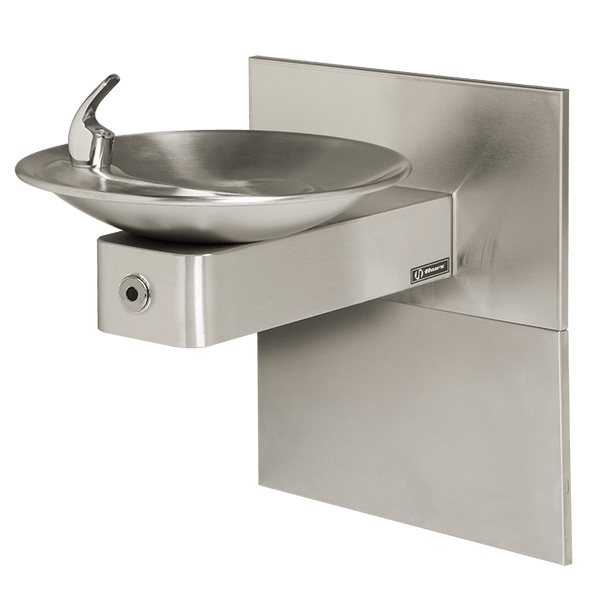

Haws 1001MSHO ADA Motion-Activated Vandal-Resistant Fountain W/Mounting System

SKU:
HW-1001MSHO
UPC:
806808248558
MPN:
1001MSHO
Availability:
Call for Leadtime
Weight:
22.00 LBS
Width:
14.00 (in)
Height:
9.00 (in)
Depth:
19.00 (in)
Shipping:
Free Shipping
MSRP: $2,825.00
$2,260.00
— You save $565.00
Frequently bought together:

Description

ADA Motion-Activated Vandal-Resistant Fountain w/Mounting System

The Haws 1001MSHO ADA touchless stainless-steel vandal-resistant drinking fountain incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation. A pressure regulator is used to adjust the bubbler flow according to incoming water pressures.

  • Touchless operation for safety and peace of mind
  • Vandal resistant components include bubbler, bowl, drain and bottom plate
  • 30-second obstruction time-out to reduce tampering of sensor
  • 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
  • Front access plate allows for front access of P-trap and stop
  • 100% lead-free waterways
  • Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminates water splash
  • Beautiful satin finish resists stains and corrosion

Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.

Specifications

Model 1001MSHO ADA wall mounted motion-activated vandal-resistant drinking fountain shall include an 18 gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket, stainless steel satin finish back and access panels allowing for front access of P-trap and stop, in-wall mounting frame, 100% lead-free waterways, sensor operated stainless steel solenoid valve with 30-second obstruction time-out controlled by a transformer, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plate, and 1-1/4" O.D. (3.2 cm) waste pipe. ..... REQUIRES MODEL MTGFR.DF1 PRICED SEPARATELY.

REQUIRES MODEL 6700 PRICED SEPARATELY.

⚠️ Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Sold Each

REQUIRES MODEL 6700 PRICED SEPARATELY.

⚠️ Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.

Sold Each
